Project Volans / Vehicle / #02

Faust v0

The aircraft: a 5-inch quadcopter with a frame I designed in SolidWorks and print in PETG.

Part of
Project Volans
Area
Vehicle
Status
Design in progress
In the loop
Fly

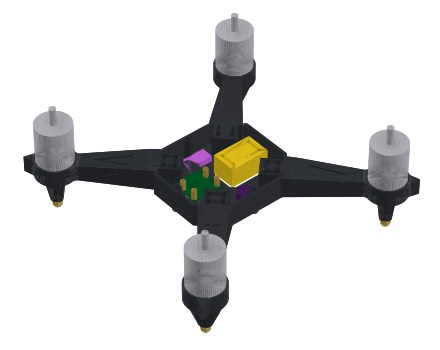

Frame and electronics, CAD
Fig. 1 / Frame and electronics, CAD

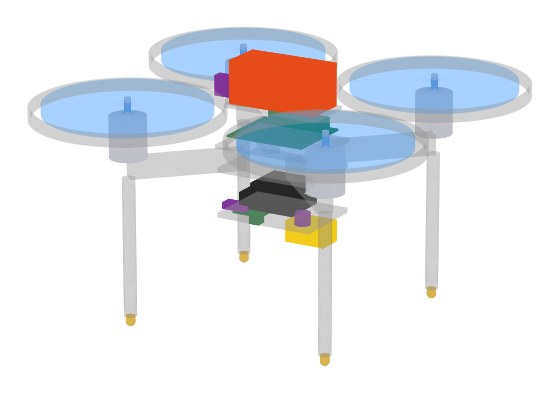

Electronics reference layout
Fig. 2 / Electronics reference layout
Assembly, side view with heights in mm
Fig. 3 / Assembly, side view with heights in mm
Arm, top view. One part, printed four times
Fig. 4 / Arm, top view. One part, printed four times
01 / What it does

The project

  • A central body holds the electronics stack, with four separate bolt-on arms, so a broken arm is a reprint, not a new frame.
  • A ring guard around each propeller and a leg under each arm tip ending in a brass foot. The feet also carry the charging current from the Base.
  • ArduPilot on the flight controller, optical flow and lidar for position hold indoors with no GNSS, and a Raspberry Pi companion with a downward camera for precision landing.
MassAbout 580 g with battery (CAD estimate)
Size5-inch props, about 33 cm across with guards
TargetsThrust to weight above 2, hover of 5 min or more
FramePETG on a Bambu Lab P1S, M3 heat-set inserts
MotorsEMAX ECO III 2207 1900KV
Flight controllerMicoAir H743 V2, ArduPilot
PositioningMTF-01P optical flow and lidar
CompanionRaspberry Pi 3 A+, Camera Module 3
Battery4S 1500 mAh LiPo
02 / Why

What it gives Volans

Every other part of Volans exists to make this aircraft fly a mission on its own and come home.

03 / Plan

Steps and targets

  1. 01Frame CAD, drawings and checksDone
  2. 02Arm checked by hand calculation; first bending mode about 210 Hz vs rotor about 160 Hz at hoverDone
  3. 03Print, wire and set up ArduPilot with props offNext
  4. 04First hoverPlanned

Success looks like

  • Stable indoor hover on optical flow
  • Hover time of 5 minutes or more
  • Arm survives a bending test with margin
